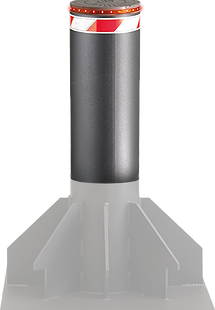

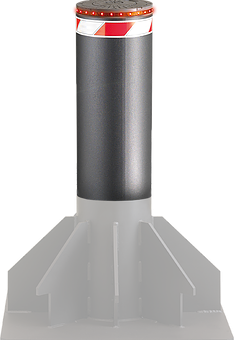

Fixed bolards FB M30 - M30

High-level counter-terrorism bolards (height 700, 900 or 1200 mm).
FB M30 fixed bolards are fixed road barriers that can stop a 7.5t vehicle at a speed of 48km / h (or 3.5t at 64km / h).

FB M30 1200
Impact resistance: 1,200,000 joules
Impact resistance: 7.5 T at 48 km / h; 3.5T at 64 km / h
Obstacle height: 1200 mm
Obstacle diameter: 275 mm
Depth of base: 400 mm

FB M30 900
Impact resistance: 700,000 joules
Impact resistance: 7.5 T at 48 km / h; 3.5T at 64 km / h
Obstacle height: 900 mm
Obstacle diameter: 275 mm
Depth of base: 400 mm

FB M30 700
Impact resistance: 700,000 joules
Impact resistance: 7.5 T at 48 km / h; 3.5T at 64 km / h
Obstacle height: 700 mm
Obstacle diameter: 275 mm
Depth of base: 400 mm

Technical specification
1. Operation can be signaled by light signals.

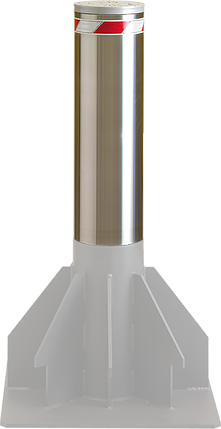

2. Finish: painted steel (with or without ribs) or as stainless steel.
